eCore Software

API documentation

Revised February 5, 2019

v1.6
v1.5

Table of Contents

Overview
Technology
- Usage Guidelines
- Request and Response Formats
Functional Overview
- All Operations
- Operation Specifications
- Error Code and Error Messages
  - Error Code and Error Message

Overview

This document describes the ePro Scheduler Plus API. The API is designed to allow external applications to interface with the ePro Scheduler Plus system. Client Applications can request for any operation defined in the service.

Service Url: https://services.ecoresoftware.com/API_v1.5/EmployeeService.svc

Technology

The API is implemented as a Secure WCF Rest web service. It will be accessible via the Internet over HTTPS/SSL only.

Security � Customers are validated customer using their assigned customer ID and password. Since the API can be consumed by a variety of users (vendor applications, customer applications, etc.), an assigned Vendor ID is also required. The customer ID, password and vendor ID is assigned by the eCore Software technical support staff.

Usage Guidelines

The API interface can be used to access customer data using the credentials described in the above paragraph. There are two versions of the interface. They are functionally identical, but vary in frequency of access and polling allowed.

Feature Set	Basic API	Premium API
Get Schedules	once every 20 mins	once every 2 mins
Get Punches	once every 20 mins	once every 2 mins
Get Employees	4 times daily	Once per 30 mins
Get Certifications	4 times daily	Once per 30 mins
Put Employee Profile	unlimited	unlimited
Put Employee Certification	unlimited	unlimited

When thresholds are exceeded the API is disabled. Please ensure your application is configured to respect the thresholds of the version you have purchased. You will have to call support to have the API re-enabled.

Request and Response Formats

Request and response data may be formatted as either XML or JSON. XML is the default format for both requests and responses. To receive a JSON-formatted response, add the following HTTP header to the request:

Accept: application/json

It may also be useful to request in XML and to receive in JSON; in that case, use the following HTTP headers:

Content-Type: application/xml
Accept: application/json

Functional Overview

All Operations

The API supports the following distinct data records for consumption:

Name	Description
GetEmployees	Returns a list of employee records
GetSchedules	Returns a list of schedules records
GetPunches	To get a list of punches records
GetCertifications	To get a list of certification records
PutEmployeeProfile	Insert the employee profile information into ePro Scheduler Plus
PutEmployeeCertification	Insert the employee certification information into ePro Scheduler Plus

Operation Specifications

GetEmployees

Description

This will return a list of all active employees� info.

Signature

EmployeeResponse GetEmployees(string customerId, string password, string vendorKey, string employeeId);

Request Parameters

Name	Type	Description
custId	string	CustomerId
pass	string	Password
vendorKey	string	Vendor key
empId	string	Employee id (optional parameter)

EmployeeResponse (in XML format)

Name	Type	Description
Status	int	0 = Successful, -1 = Unsuccessful
ErrorCode	int	Error Code
ErrorMessage	string	Error Message
Employees	Employee[]	An array of employees in XML format

<EmployeeResponse xmlns="http://schemas.datacontract.org/2004/07/API.Service" xmlns:i="http://www.w3.org/2001/XMLSchema-instance">
  <ErrorCode>0</ErrorCode>
  <ErrorMessage><ErrorMessage />
  <Status>0</Status>
  <Employees>
    <Employee>
      <EmployeeId>2824</EmployeeId>
      <FirstName>Julie</FirstName>
      <LastName>Crane</LastName>
      <CellPhone>555-555-5555</CellPhone>
      <Pager>555-555-5555</Pager>
      <EmailAddress>[email protected]</EmailAddress>
      <Status>0</Status>
      <HomeCostCenter>421</HomeCostCenter>
      <Address>14 First Avenue</Address>
      <City>Blaine</City>
      <State>MN</State>
      <Zip>55423</Zip>
      <FTHireDate>10/20/2004</FTHireDate>
      <HireDate>10/20/2004</HireDate>
      <BirthDate>09/04/1974</BirthDate>
    </Employee>
  </Employees>
</EmployeeResponse>

C# Code Sample

The following C# code shows how to call GetEmployees:

GetSchedules

Description

This will return a list of schedule info that meets the criteria: Called from external application.

Signature

ScheduleResponse GetSchedules(string customerId, string password, string vendorKey, string employeeId, string startTime, string endTime);

Request Parameters

Name	Type	Description
custId	string	Customer id
Pass	string	Password
vendorKey	string	Vendor key
empId	string	Employee Id (optional)
starttime	string	schedule start time
endtime	string	schedule end time

ScheduleResponse (in XML format)

Name	Type	Description
Status	int	0 = Successful, -1 = Unsuccessful
ErrorCode	int	Error Code
ErrorMessage	string	Error Message
Schedules	Schedule[]	An array of schedules in XML format

<ScheduleResponse xmlns="http://schemas.datacontract.org/2004/07/API.Service" xmlns:i="http://www.w3.org/2001/XMLSchema-instance">
  <Status>0</Status>
  <ErrorCode>0</ErrorCode>
  <ErrorMessage><ErrorMessage />
  <Schedules>
    <Schedule>
      <EmployeeId>0</EmployeeId>
      <StartTime>3/23/2008 8:00:00 PM</StartTime>
      <EndTime>3/23/2008 6:00:00 PM</EndTime>
      <Duration>12</Duration>
      <Qualification>Pilot</Qualification>
      <UnitName>BLS 12</UnitName>
      <CostCenter>002</CostCenter>
      <EarningCode>R</EarningCode>
      <ResourceType>NA</ResourceType>
      <Comments>Weather Check in AM</Comments>
      <VehicleName>482</ VehicleName>
      <InServiceTime>3/23/2008 8:20:00 AM</ InServiceTime>
      <OutOfServiceTime>3/23/2008 5:04:00 PM</ OutOfServiceTime>
      <ItemID>303</ItemID>
    </Schedule>
    <Schedule>
      <EmployeeId>10494</EmployeeId>
      <StartTime>3/24/2008 8:00:00 AM</StartTime>
      <EndTime>3/24/2008 4:00:00 PM</EndTime>
      <Duration>8</Duration>
      <Qualification>Admin</Qualification>
      <UnitName>Base 7</UnitName>
      <CostCenter>004</CostCenter>
      <EarningCode>R</EarningCode>
      <ResourceType>NA</ResourceType>
      <Comments>Weather Check in AM</Comments>
      <VehicleName>483</ VehicleName>
      <InServiceTime>3/23/2008 8:20:00 AM</ InServiceTime>
      <OutOfServiceTime>3/23/2008 5:04:00 PM</ OutOfServiceTime>
      <RecordID>302</RecordID>
    </Schedule>
  </Schedules>
</ScheduleResponse>

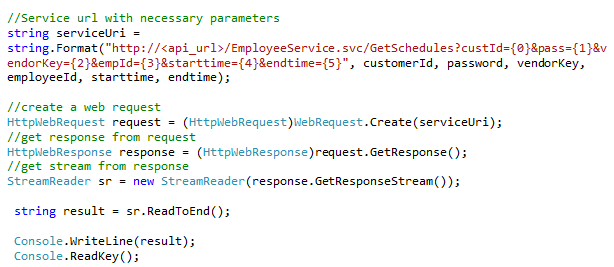

C# Code Sample

The following C# code shows how to call GetSchedules:

GetPunches

Description

This will return a list of punch info that meets the criteria: Called from external application.

Signature

PunchResponse GetPunches(string customerId, string password, string vendorKey, string employeeId, string startTime, string endTime);

Request Parameters

Name	Type	Description
custId	string	Customer id
Pass	string	Password
vendorKey	string	Vendor key
empId	string	Employee Id (optional)
starttime	string	Start time
endtime	string	End time

PunchResponse (in XML format)

Name	Type	Description
Status	int	0 = Successful, -1 = Unsuccessful
ErrorCode	int	Error Code
ErrorMessage	string	Error Message
Punches	Punch[]	An array of punches in XML format

<PunchResponse xmlns="http://schemas.datacontract.org/2004/07/API.Service" xmlns:i="http://www.w3.org/2001/XMLSchema-instance">
  <Status>0</Status>
  <ErrorCode>0</ErrorCode>
  <ErrorMessage><ErrorMessage />
  <Punches>
    <Punch>
      <EmployeeId>8776</EmployeeId>
      <InPunchTime>3/26/2008 8:00:00 AM</InPunchTime>
      <OutPunchTime>3/28/2008 2:55:34 PM</OutPunchTime>
    </Punch>
    <Punch>
      <EmployeeId>99110</EmployeeId>
      <InPunchTime>3/24/2008 7:56:00 AM</InPunchTime>
      <OutPunchTime>3/24/2008 9:00:00 PM</OutPunchTime>
    </Punch>
  </Punches>
</PunchResponse>

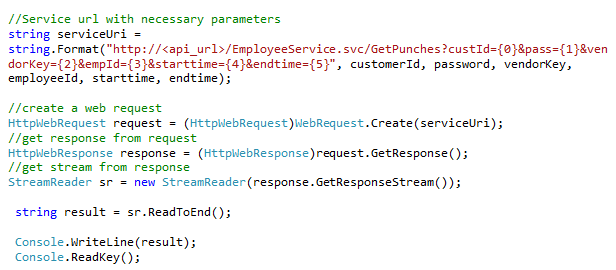

C# Code Sample

The following C# code shows how to call GetPunches:

GetCertifications

Description

This will return a list of certifications info that meets the criteria: Called from external application.

Signature

CertificationResponse GetCertifications(string customerId, string password, string vendorKey, string employeeId);

Request Parameters

Name	Type	Description
custId	string	Customer id
Pass	string	Password
vendorKey	string	Vendor key
empId	string	Employee Id (optional)

Response Result (in XML format)

Name	Type	Description
Status	int	0 = Successful, -1 = Unsuccessful
ErrorCode	int	Error Code
ErrorMessage	string	Error Message
Certifications	Certification[]	An array of certifications in XML format

<CertificationResponse xmlns="http://schemas.datacontract.org/2004/07/API.Service" xmlns:i="http://www.w3.org/2001/XMLSchema-instance">
  <Status>0</Status>
  <ErrorCode>0</ErrorCode>
  <ErrorMessage><ErrorMessage />
  <Certifications>
    <Certification>
      <EmployeeId>10490</EmployeeId>
      <CertificationName>CPR</CertificationName>
      <CertificationNumber>123</CertificationNumber>
      <EffectiveDate>9/25/2013 12:00:00 AM</EffectiveDate>
      <ExpirationDate>9/25/2014 12:00:00 AM</ExpirationDate>
    </Certification>
    <Certification>
      <EmployeeId>10491</EmployeeId>
      <CertificationName>Medic</CertificationName>
      <CertificationNumber>123</CertificationNumber>
      <EffectiveDate>9/25/2013 12:00:00 AM</EffectiveDate>
      <ExpirationDate>9/25/2014 12:00:00 AM</ExpirationDate>
    </Certification>
  </Certifications>
</CertificationResponse>

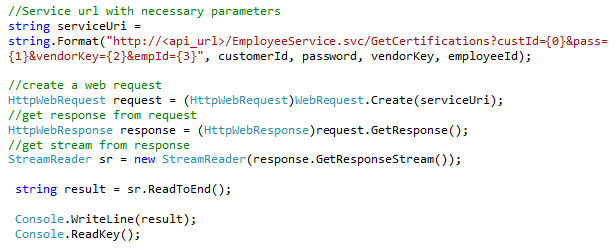

C# Code Sample

PutEmployeeProfile

Description

This will insert the employee profile information into ePro Scheduler Plus for the designated customer. The insert will fail if the Employee ID exists.

Signature

EmployeeProfileResponse PutEmployeeProfile(EmployeeProfileRequest request);

Request Body

An EmployeeProfileRequest object in XML format.

<EmployeeProfileRequest xmlns="https://www.net-scheduler.com/eProPlus">
  <CustomerId>developer</CustomerId>
  <Password>password</Password>
  <VendorKey>Sunbee</VendorKey>
  <EmployeeProfile>
    <EmployeeId>5555511</EmployeeId>
    <FirstName>Patrick</FirstName>
    <LastName>Fitzsimmons</LastName>
    <HireDate>12/21/2016 5:00:39 PM</HireDate>
    <FTHireDate>9/21/2016 5:00:39 PM</FTHireDate>
    <PayRate>40.50</PayRate>
    <PayPayType>H</PayPayType>
    <Address>8360 LBJ Fwy, Suite #255</Address>
    <City>Dallas</City>
    <State>TX</State>
    <Zip>75243</Zip>
    <HomePhone>888-123-3435</HomePhone>
    <Pager>888-121-3344</Pager>
    <CellPhone>888-121-3344</CellPhone>
    <EmergencyContactPhone>888-121-3344</EmergencyContactPhone>
    <EmergencyContactPerson>Justin Custer</EmergencyContactPerson>
    <EmailAddress>[email protected]</EmailAddress>
    <HomeCostCenter>001</HomeCostCenter>
  </EmployeeProfile>
</EmployeeProfileRequest>

EmployeeProfileRequest Object

Name	Type	Description
CustomerId	string	Customer id
Password	string	Password
VendorKey	string	Vendor key
EmployeeProfile	object	EmployeeProfile object

EmployeeProfile Object

Name	Type	Description
EmployeeId	string	Employee Id
FirstName	string	First name
LastName	string	Last name
HireDate	string	Hire date
FTHireDate	string	Full time hire date
PayRate	string	Pay Rate
PayType	string	H or S (Hourly or Salary)
Address	string	Home address
City	string	Home city
State	string	Home state
Zip	string	Home zip code
HomePhone	string	Home phone number
Pager	string	Pager number
CellPhone	string	Cell phone number
EmergencyContactPhone	string	Emergency contact phone number
EmergencyContactPerson	string	Emergency contact person
EMailAddress	string	Email Address
HomeCostCenter	string	Home Cost Center/Department

Response Result (in XML format)

Name	Type	Description
Status	int	0 = Successful, -1 = Unsuccessful
ErrorCode	int	Error Code
ErrorMessage	string	Error Message

<EmployeeProfileResponse xmlns="http://schemas.datacontract.org/2004/07/API.Service" xmlns:i="http://www.w3.org/2001/XMLSchema-instance">
  <Status>0</Status>
  <ErrorCode>0</ErrorCode>
  <ErrorMessage />
</EmployeeProfileResponse>

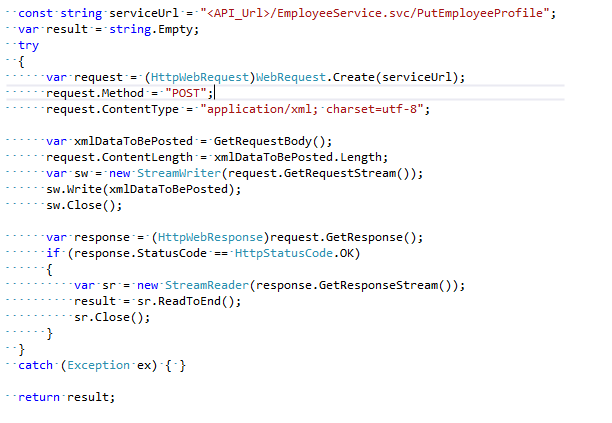

C# Code Sample

The following C# code shows how to call PutEmployeeProfile:

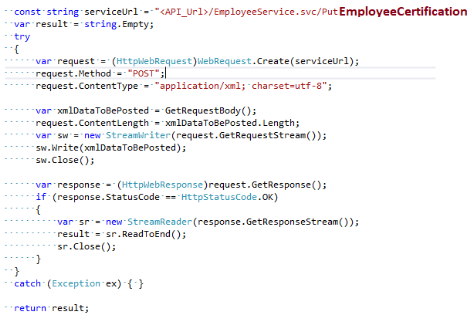

PutEmployeeCertification

Description

This will insert the employee certification information into ePro Scheduler Plus for the designated customer. The insert will fail if the certification does not exist.

Signature

EmployeeCertificationResponse PutEmployeeCertification(EmployeeCertificationRequest request);

Request Body

An EmployeeCertificationRequest object in xml format.

<EmployeeCertificationRequest xmlns="https://www.net-scheduler.com/eProPlus">
  <CustomerId>(CustomerId)</CustomerId>
  <Password>(Password)</Password>
  <VendorKey>(VendorKey)</VendorKey>
  <EmployeeCertification>
    <EmployeeId>(EmployeeId)</EmployeeId>
    <Certification>(CertificationName)</Certification>
    <Number></Number>
    <ExpirationDate></ExpirationDate>
    <EffectiveDate></EffectiveDate>
    <Notes></Notes>
  </EmployeeCertification>
</EmployeeCertificationRequest>

EmployeeCertificationRequest Object

Name	Type	Description
CustomerId	string	Customer id
Password	string	Password
VendorKey	string	Vendor key
EmployeeCertification	object	EmployeeCertification object

EmployeeCertification Object

Name	Type	Description
EmployeeId	string	Employee Id
Certification	string	Certification name
Number	string	Certification Number
ExpirationDate	string	Expiration Date
EffectiveDate	string	Effective Date
Notes	string	Notes

Response Result (in XML format)

Name	Type	Description
Status	int	0 = Successful, -1 = Unsuccessful
ErrorCode	int	Error Code
ErrorMessage	string	Error Message

<EmployeeCertificationResponse xmlns="http://schemas.datacontract.org/2004/07/API.Service" xmlns:i="http://www.w3.org/2001/XMLSchema-instance">
  <Status>0</Status>
  <ErrorCode>0</ErrorCode>
  <ErrorMessage />
</EmployeeCertificationResponse>

C# Code Sample

The following C# code shows how to call PutEmployeeCertification:

Error Code and Error Messages

Error Code and Error Message

Description

On errors, the system generates and returns a custom error message with error code. The table below table shows all error messages corresponding to their code number.

Error Code and Error Message

Error Code	Error Message
100	Authentication Failed. Invalid customer ID or password.
101	Customer ID is required.
102	Password is required.
103	Customer ID and password are required.
104	Time format is invalid.
105	Start time is required.
106	End time is required.
107	Start and end time are required.
108	Date range cannot be more than one week.
109	Start time cannot be greater than end time.
110	Illegal access.
111	An internal or network error occurred.
112	Vendor does not exist.
113	Vendor key is required.
114	Usage Threshold Exceeded: «data type»
